Mini handheld QR Code bluetooth wireless barcode scanner

Portable 2D Bluetooth Barcode Scanner, 3-in-1 2.4G Wireless & Bluetooth & USB Wired Barcode Reader ISBN Code 128 Bar Code Scanning Work with Windows, Android, iOS, Tablets or Computers It can command trig by Bluetooth It built-in screen Ii scan display the time Symchronize internet time It can display the barcode data when scan the barcode Support BLE,SPP, HID Keyboard

Send Inquiry

Appendix

Product Description

mini handheld bluetooth qr code scanner

 Zhongze Technology is a professional barcode scanner manufacturer in china since 2004, We own a factory with 1450 Square meters in dongguan city, we have 6 production lines, 40 production workers, 3 quality control staffs and 20 engineers, over those years, we focus on scanner engines development, especially 2D engines, therefore, we are the factory that masters the core technology of the barcode scanners. In order to meet the market demand, we find a large co-packer to enlarge the capacity. Few years past, the co-packer becomes out long-term partner and our capacity is increasing from 50000pcs to 200000pcs per month.

Functions

Portable 2D Bluetooth Barcode Scanner,

3-in-1 2.4G Wireless & Bluetooth & USB Wired Barcode Reader ISBN Code 128 Bar Code Scanning Work with Windows, Android, iOS, Tablets or Computers

It can command trig by Bluetooth

It built-in screen

Ii scan display the time

Symchronize internet time

It can display the barcode data when scan the barcode

Support BLE,SPP, HID Keyboard



Function introduction

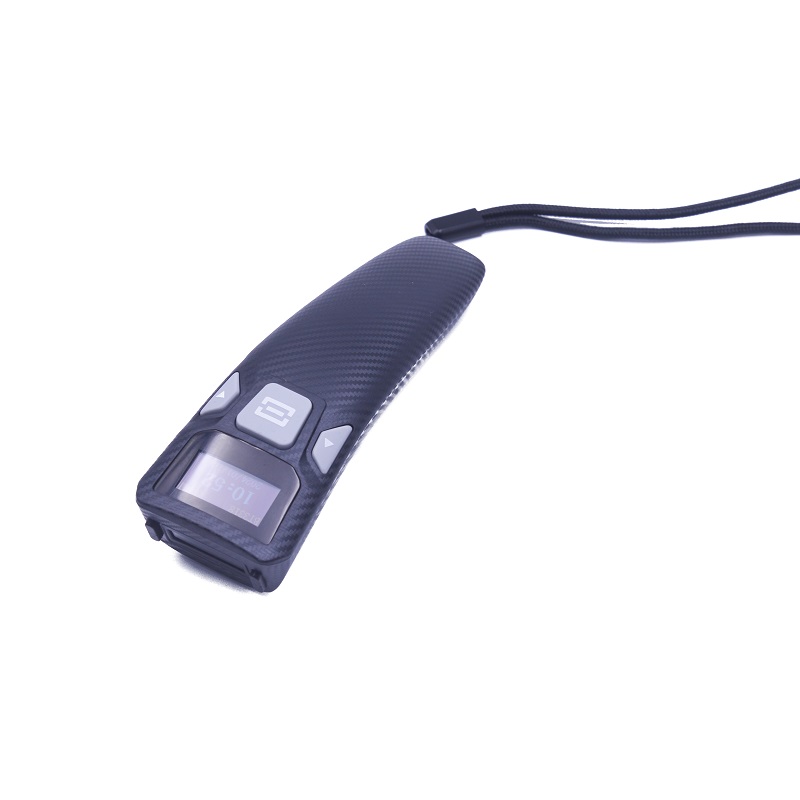

·        Portable Mini barcode Scanner: Super light only 32g/1.13oz, and mini size. One-fourth the size of a mobile phone, easy to carry. When you do not need to use it, just put it in your pocket. Especially for shop, bookstore, library, warehouse, supermarket.

·        Strong 1D Barcode Decoding Ability :  1D barcode scanner support scan most of 1D barcodes, such as EAN, UPC, Code 39, Code 128, UCC/EAN 128, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, MSI-Plessey, GS1 Databar, Code 11, Industrial 25, Standard 25, Plessey, Matrix 2 of 5.

·        3-in-1 Connection Ways: This Bluetooth barcode scanner support 2.4G wireless, Bluetooth wireless and USB wired 3 connection modes, you can choose the most convenient way according to your needs. Compatible with Windows, macOS, Linux, Android and IOS operating system.

·        Powerful Battery System: Our  barcode scanner built-in 800mAh rechargeable lithium battery, can work continuously for 20 Hours under normal condition after fully charged, standby time up to 720 hours, and charging takes only 3 hours.

·        Multiple Configuration Options: This  wireless barcode scanner support instant upload and storage mode two types upload modes, hide front and back characters, add prefix or suffix, set sleep time, set sound and vibration, etc useful function. You can set these functions according to your needs.

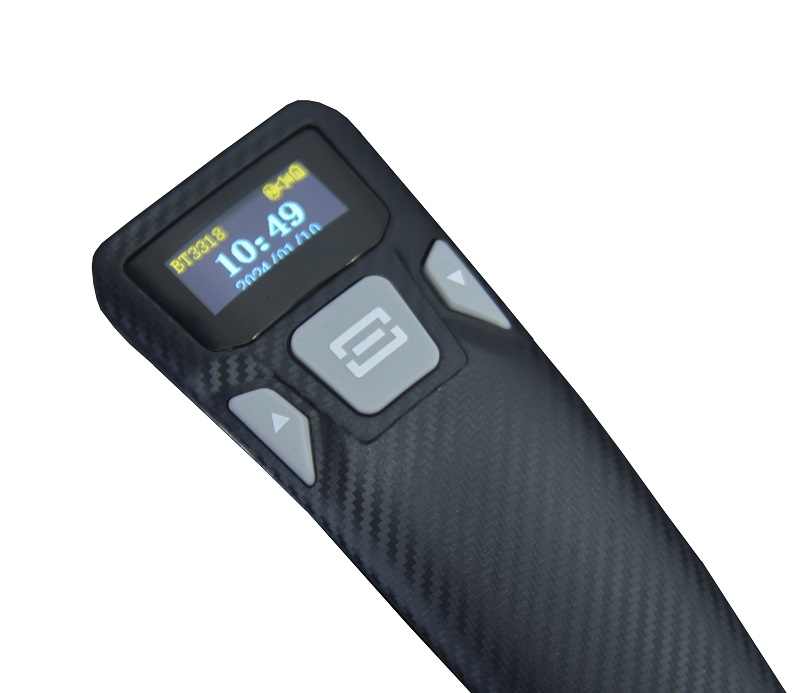

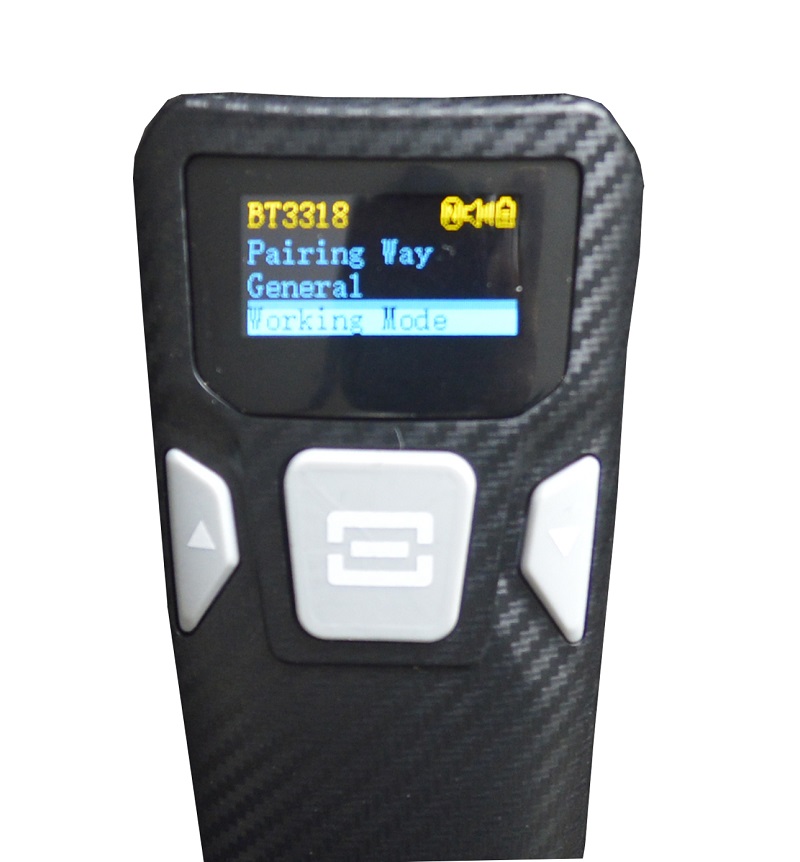

·        Buit-in screen: It can display the time and barcode, and it can synchronize the internet time





Specification parameters

Performance

Bluetooth

Bluetooth class 4.2

Processor

ARM Cortex-M3,32-bit

EEPROM

16MKB, Over 10000 barcodes storage Available

Support OS

Microsoft Windows XP/7.0/8.0/10, Mobile6/Wince, Android, IOS. (without driver)

Scan speed

400times/s

Sensor

752*480 pixel

Power supply

Built-in chargeable Li-ion battery DC 3.7V,800mA

Resolution

4mil(0.102mm)@PCS90%

Decode Capability

1D Barcodes only – Codabar, Code 11, Code 93, MSI, Code 128, UCC/EAN-128,

Code 39, EAN-8, EAN-13, UPC-A, ISBN, Industrial 25, Interleaved 25,

Standard 25, 2/5 Matrix, QR code, DataMatrix, PDF417,Maxi Code …

Decode mode

Auto sensor mode ,trig mode, trig command mode

Scan angles

Roll 30° Pitch 60° Yaw60°

Indication

Beeper, LED

Radio Range

Bluetooth:30 meter, 2.4G:80 meters effective open distance

Work time

Over 20hours

Environmental

Operating Temp

0 to 50. °C / 32 to 122°F

Storage Temp

0 to 50. °C / 32 to 122°F

Operating Humidity

20-85% ( non-condensing )

Storage Humidity

20-85% ( non-condensing )

Drop Specifications

2 meters fall into concrete for several times

Accessories

Lithium battery, Charger., USB Cable(type A)

Electrical

Voltage

DC 5V

Safety

CLASS I

Standby current

20uA

Working current

180mA

Physical

Material

ABS,Rubber

Size

Length 137 mm * Width 43 mm * Height 32 mm

Color

Black

Weight

65gWith battery



Packaging and delivery

Model Num: BT3318

Brand Name: SCANLOGIC

Payment Terms: T/T

Supply Ability: 80000pcs per month

Delivery Time: 5-15 work days

Packagin Details: 50pcs/carton (There is have box in the carton for each one.)

Carton Size: 46*23*25 cm  box size:11*9*4.5cm

Carton Weight: 6kg

Place of origin: DongGuan, China



Our Service:

We are passionate about providing world-class service experiences. You can reach our dedicated team of customer service enthusiasts at  service@scanlb.com  Our reputation rests equally on our creative design approach, as well as our technical expertise and attention to detail to turn your visions into reality. We pride ourselves on delivering a proactive service designed to ensure we meet your needs consistently. We monitor our service performance continuously to make sure customers consistently judge us to be the benchmark within the industry. You are at the center of everything we do and we look forward to helping you.

We do what we say we will do by providing the best solution for our customers’ concerns.

We keep our colleagues and customers informed about changes that affect them.

We listen to individual needs and concerns, and act on what they tell us.

We will display a passion for all we do, taking ownership and managing customer relations.

We offer new ideas to improve our business and customer relations.

We treat our colleagues with respect and recognize that everyone has an important contribution to make.

We take ownership of our professional appearance and tools, which makes us successful.

We are empowered to inspire each other to delight our customers and achieve our goals.

We will connect with our customers through honest, focused and straightforward conversations.

We are engaged in all we do.

We use every opportunity to grow our knowledge.



FAQ:

1.      Are you a manufacturer? Do you have a factory?

Reply: We are a professional manufacturer for more than 20 years, we have factories, you can see the pictures of our new factories.



2.      Do you offer OEM?

Reply: Yes, We supply not only OEM but also ODM.



3.      What is the smallest order you can accept?

Reply: Min: 20pcs, Because our smallest carton is 20 pcs.



4.      Do you support free samples?

Reply: We offer a sample, but we don't provide the freight.



5.  What's your delivery time?

Reply: We have it in stock. The earliest delivery time is one day. The specific time should be determined according to the quantity.
